Technical lectern 1 - motorized height adjustment

Robust lectern with motorized height adjustment, 8U for 19" technology
Item number: 83600101

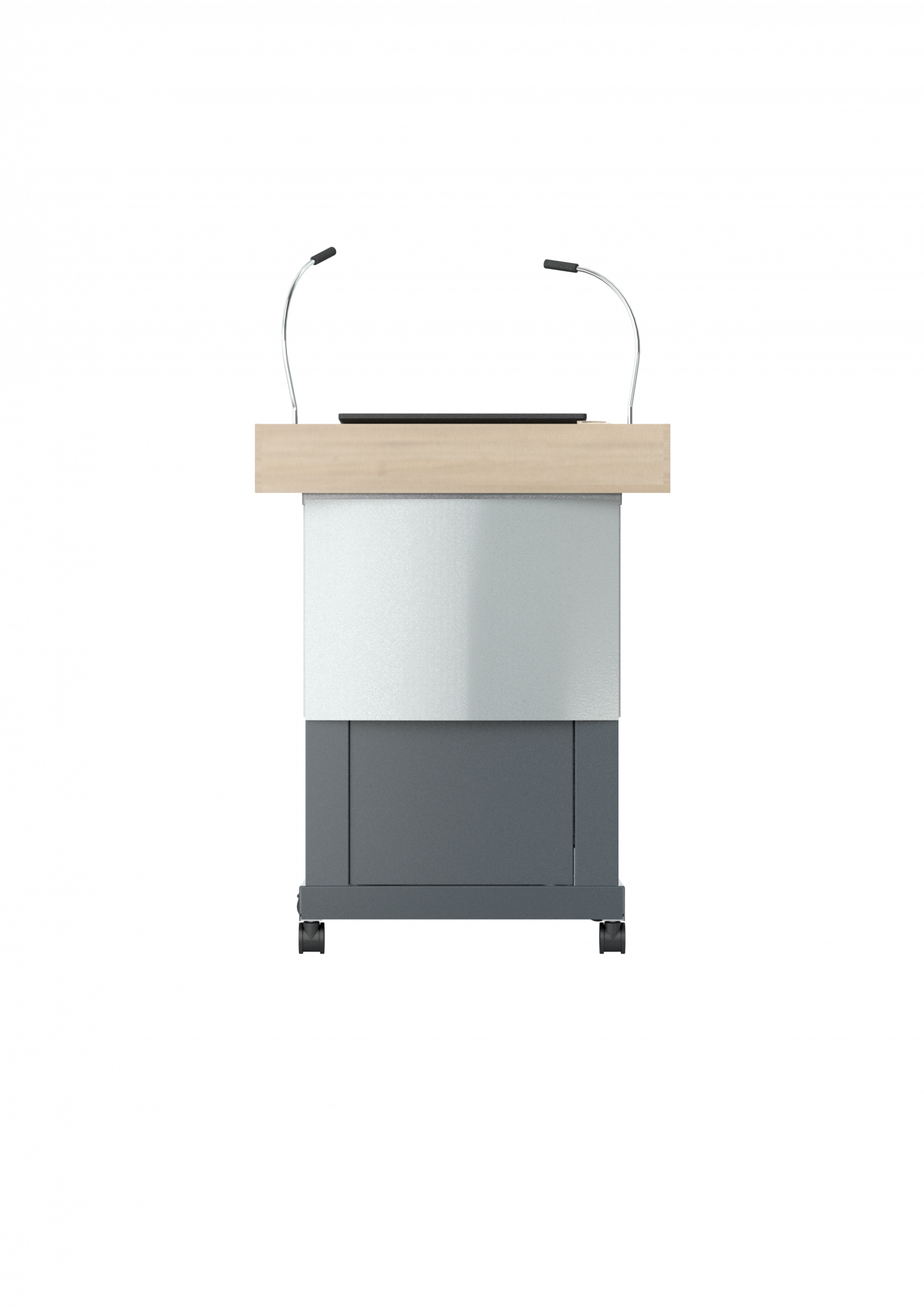

Product image Technical lectern 1 - motorized height adjustment 83600101
Product image Technical lectern 1 - motorized height adjustment 83600101 Product image Technical lectern 1 - motorized height adjustment 83600101 Product image Technical lectern 1 - motorized height adjustment 83600101

Product description

The elegant and electrically height-adjustable lectern is the ideal solution for equipping technical colleges, universities and wherever lectures and presentations are important.

In order to adapt the Technik lectern 1 ergonomically to the height of each speaker, a stepless, electric height adjustment of 30 cm is integrated. This provides the speaker with as much comfort as possible.

In addition to mobility, the electrically height-adjustable lectern also offers many additional options and optional cut-outs for integrating multimedia technology.
The technical lectern 1 is equipped with 4 smooth-running castors, 2 of which are lockable, so that it can be used on the move at any time.

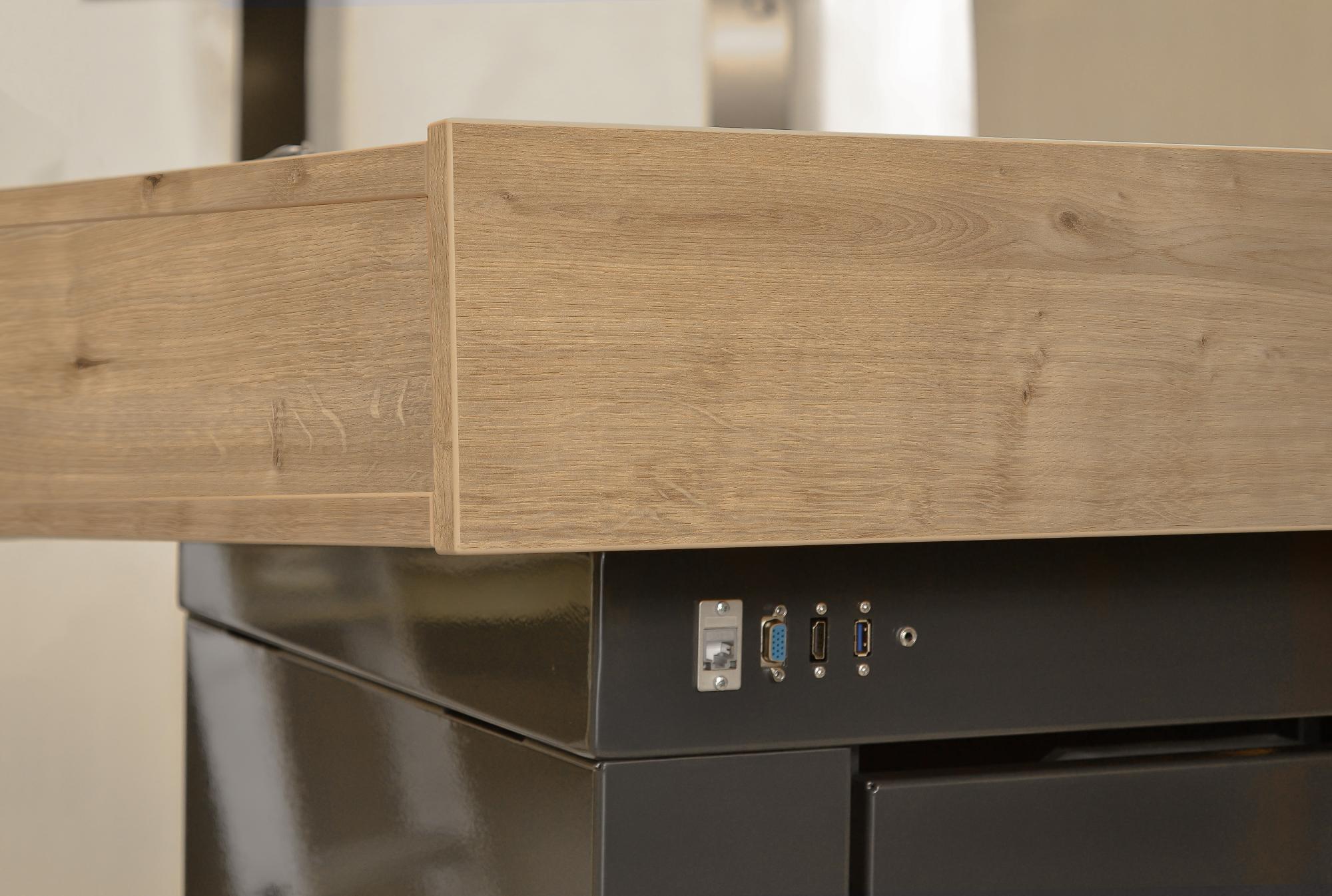

To accommodate 19" technology (max. 8U), the lectern has a lockable base cabinet in which various technical devices can be accommodated and stored. The basic equipment includes a shelf for a glass of water and a connection panel (HDMI, USB/LAN, 3.5 jack stereo and 230V socket) in the middle under the lectern top, which is inclined approx. 8° towards the speaker.

(Illustration: Colour example: decor Bardolino natural oak H1145 ST10, carcass/base plate: anthracite grey RAL7016)


Features

  • Made in Germany
  • Ergonomic and mobile
  • Integrated cable management
  • Motorized height adjustment by approx. 30 cm
  • Modular design, many additional options
  • Can be customized visually

Icon platform stand
Free-standing
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable

Configuration

Item number83600101
Width 980 mm38.6"
Height 950 mm - 1250 mm37.4" - 49.2"
Depth 740 mm29.1"
Weight 149 kg328.5 lbs
Packages Package dimensions WxHxD Package weight
836001011200 x 1400 x 800 mm / 47.2 x 55.1 x 31.5"163 kg / 359.4 lbs
Product sheet DE
83600101
Image PDF download Image show PDF
Product sheet EN
83600101
Image PDF download Image show PDF
technical drawing
83600101
Image PDF download Image show PDF
