Frame screen - "Brilliant-G

with hidden metal double frame for wall mounting, available in different formats

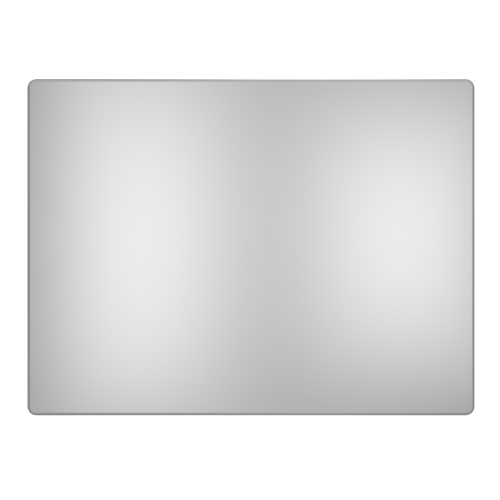

Product image Frame screen - "Brilliant-G

Product description

Frame screens are characterized by an elegant, timeless design and are suitable for fixed installation. The Brilliant-G is suitable for seminar and conference halls but also for cinemas.

The Brillant-G consists of a stable metal double frame as a steel construction for wall mounting. You can get the projection screen in different formats and designs

The Brilliant-G is suitable for direct wall mounting. It is firmly screwed by several frame elements, the quantity of elements depends on the size of the projection screen. The screen surface is attached to the back of the frame by means of tensioning rubbers.

The standard installation depth is approx. 15 cm including mounting brackets. If required, the frame can be supplied with an installation depth of approx. 11 cm using the "snap in" system. This makes installation in niches with limited installation depth and width possible without any problems.


Features

  • Formats up to 600x375 cm
  • Special designs up to 18 meters
  • Installation depth of approx. 15 cm
  • Installation depth of approx. 11 cm possible with snap-in system (on request)
  • Screen surface: Matte white S
  • Screen surface with seam from 200 cm screen surface width
  • Construction DIN 56950-4: 2015 Safety requirements and tests for ready-made screen walls

Icon wallmounted system
Wall mounted

Configuration

Item numberN/A
Product nameFrame screen - "Brilliant-G
