MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98".

Motorized height adjustable wall mount
Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98".
Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98". -1 Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98". -2 Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98". -3 Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98". -4 Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98". -5 Product image MOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98". -6

Product description

Our MOW series, motorized wall mount, is one of the most popular display mounts due to its thoughtful design and customizable look. The complete series is barrier-free.

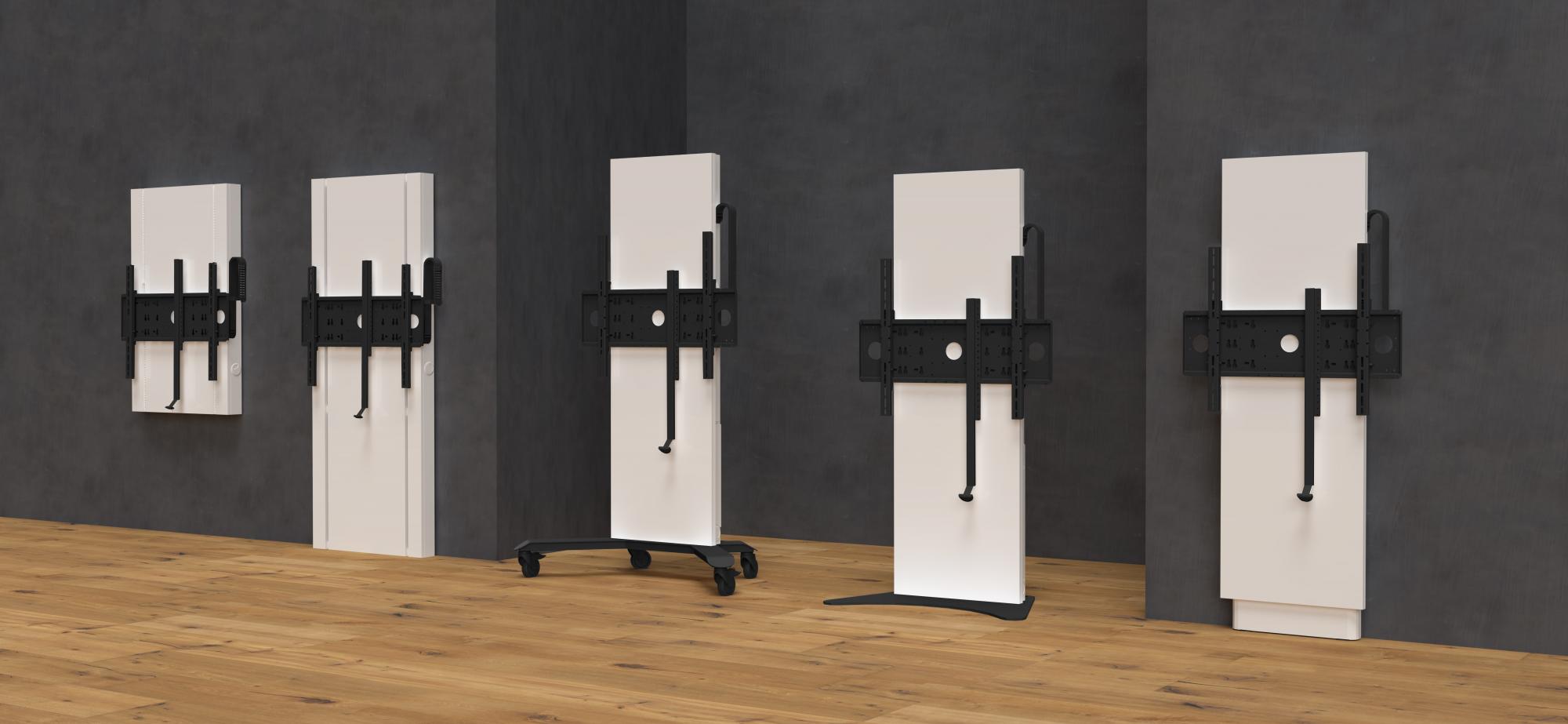

To fit any of your room sizes, the MOW is available with slim column, with wide column and even for mounting above a lowboard. They are the ideal mount to safely install large and very heavy displays.

We have expanded our MOW series with the cost-effective MOW-S 130 B grid. This is ideal for greeting customers in reception and entrance halls or for employee information.

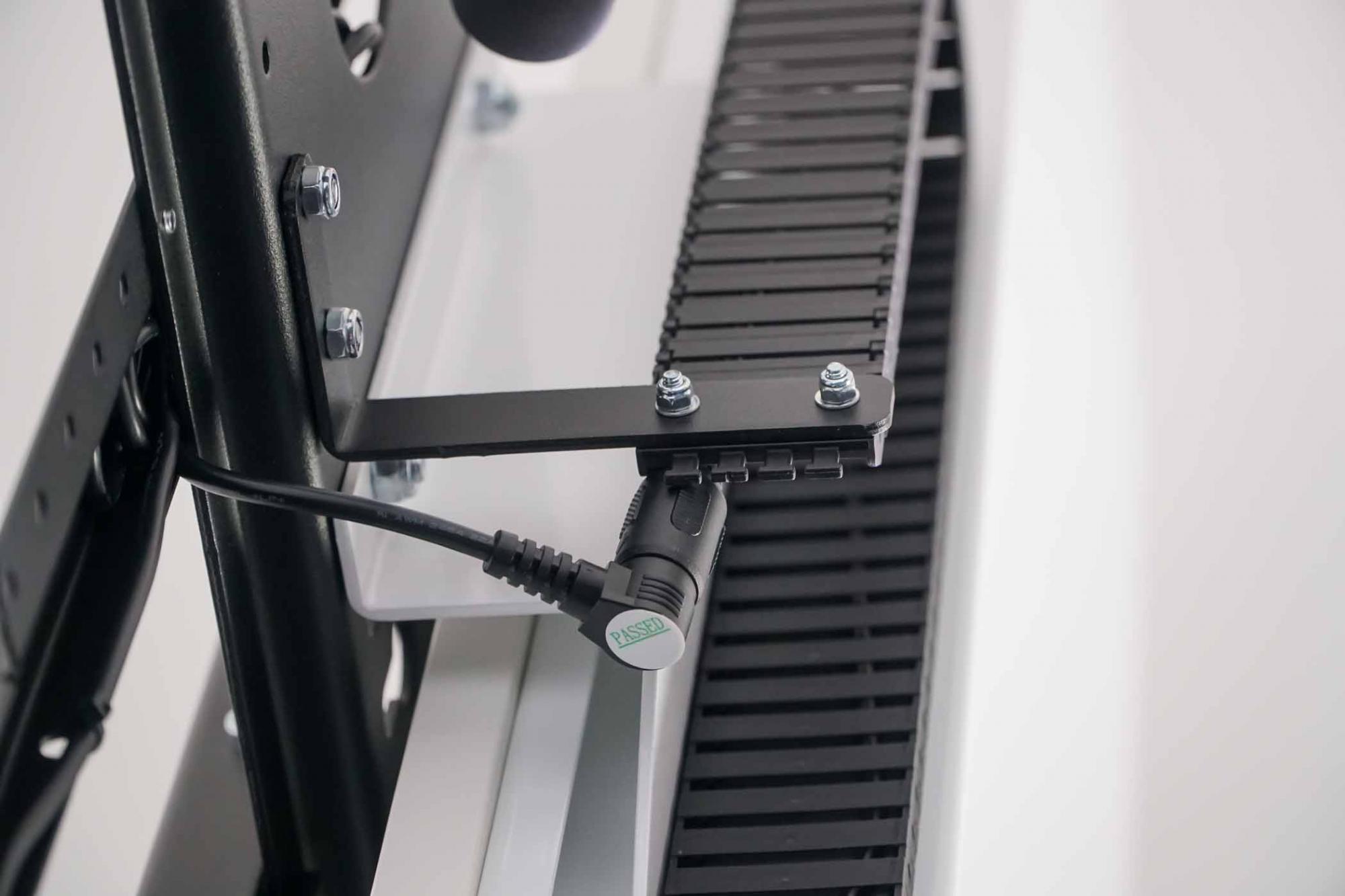

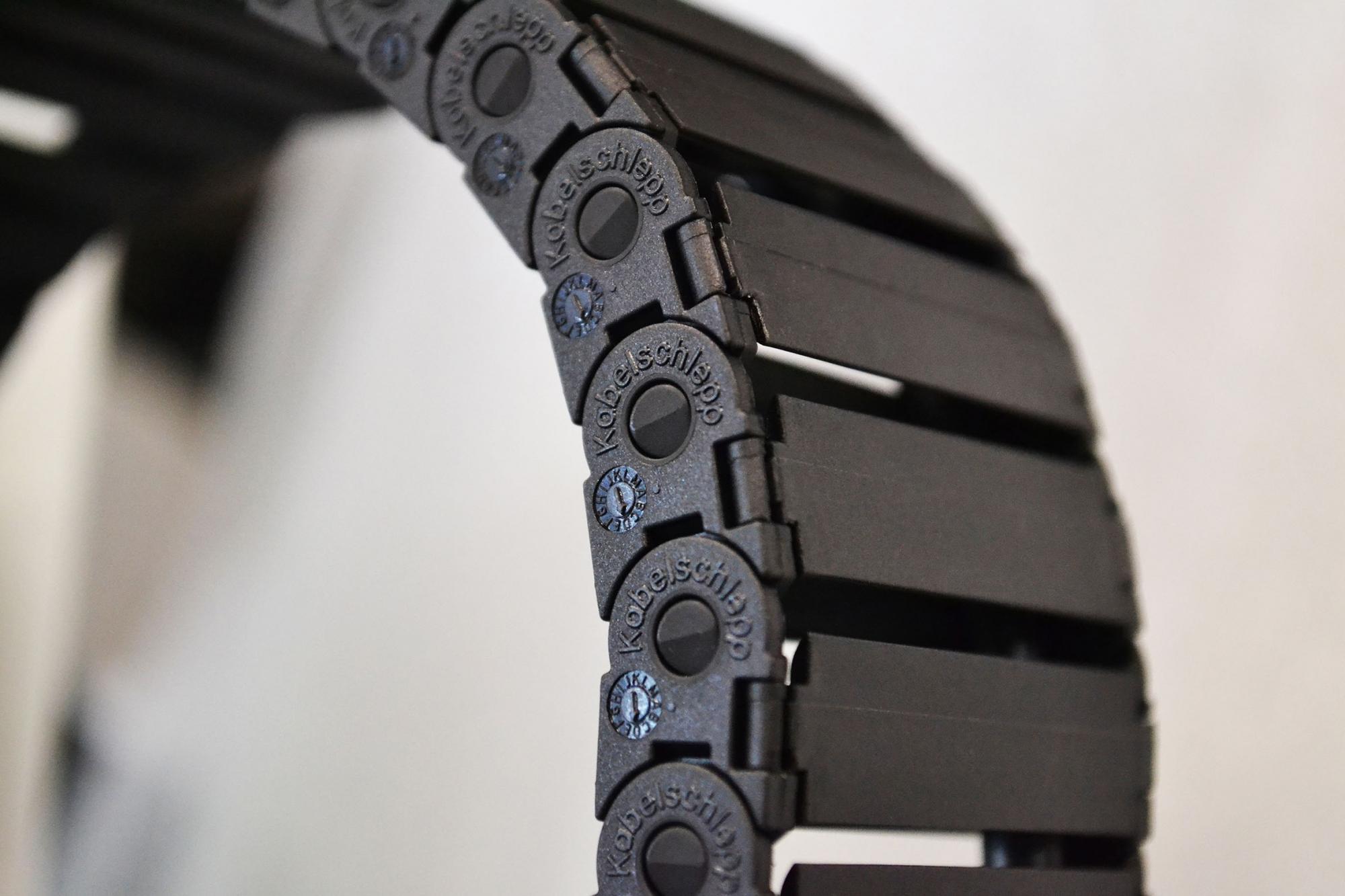

To guarantee you a flawless look, the complex system management for all three variants takes place inside the column. Outside, the cable management is taken over in the cable drag, so that no cables can disturb you.

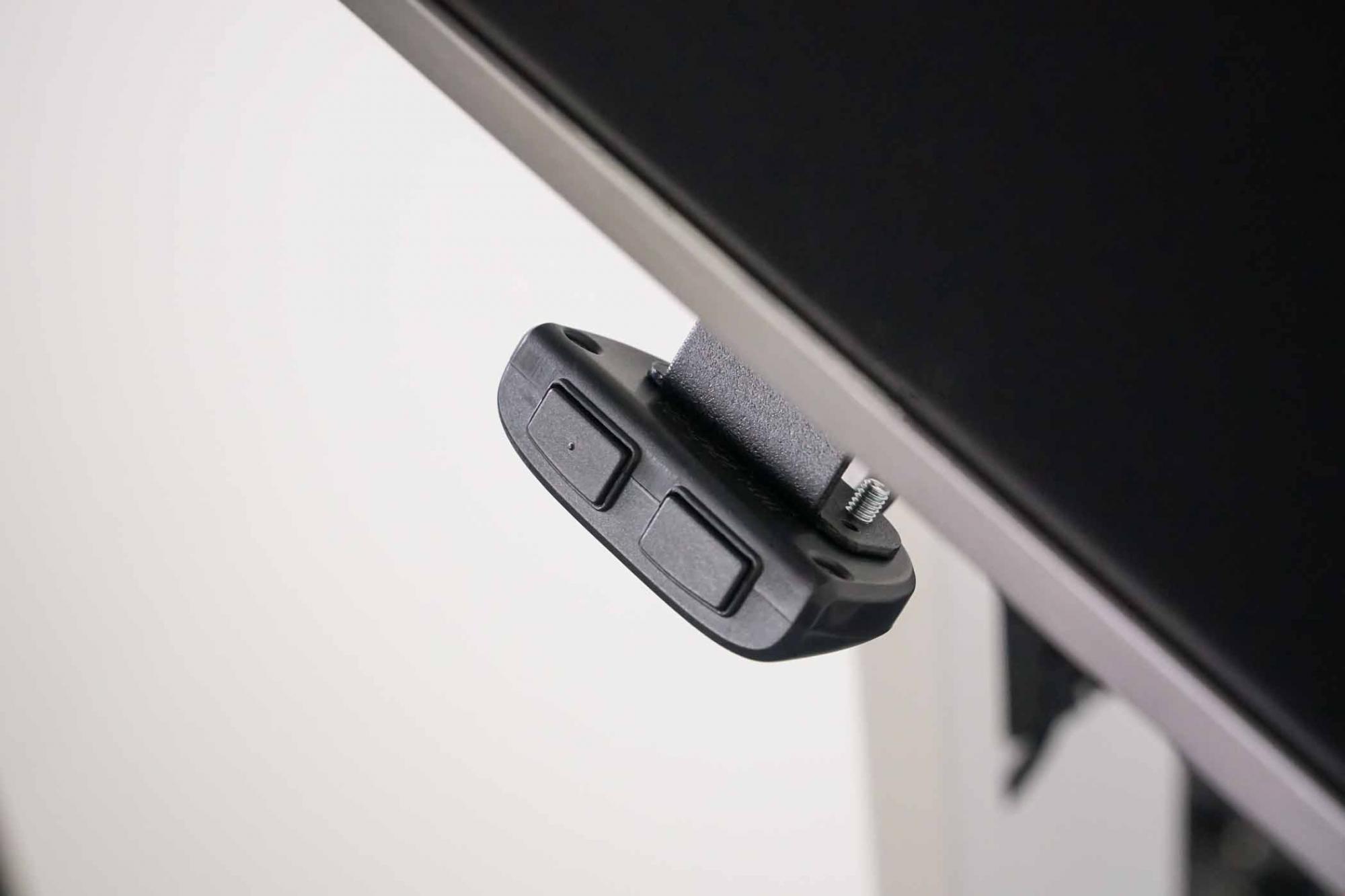

With the MOW series, displays up to 120 kg or 130 kg can be motorized in height with an up and down switch directly below the display.

The MOW series convinces with its easy handling and its modern, elegant design, making it the perfect support for your next meeting.


Features

  • Made in Germany
  • Display approx. 50 cm motorized movable
  • Wall mounting or wall-floor mounting

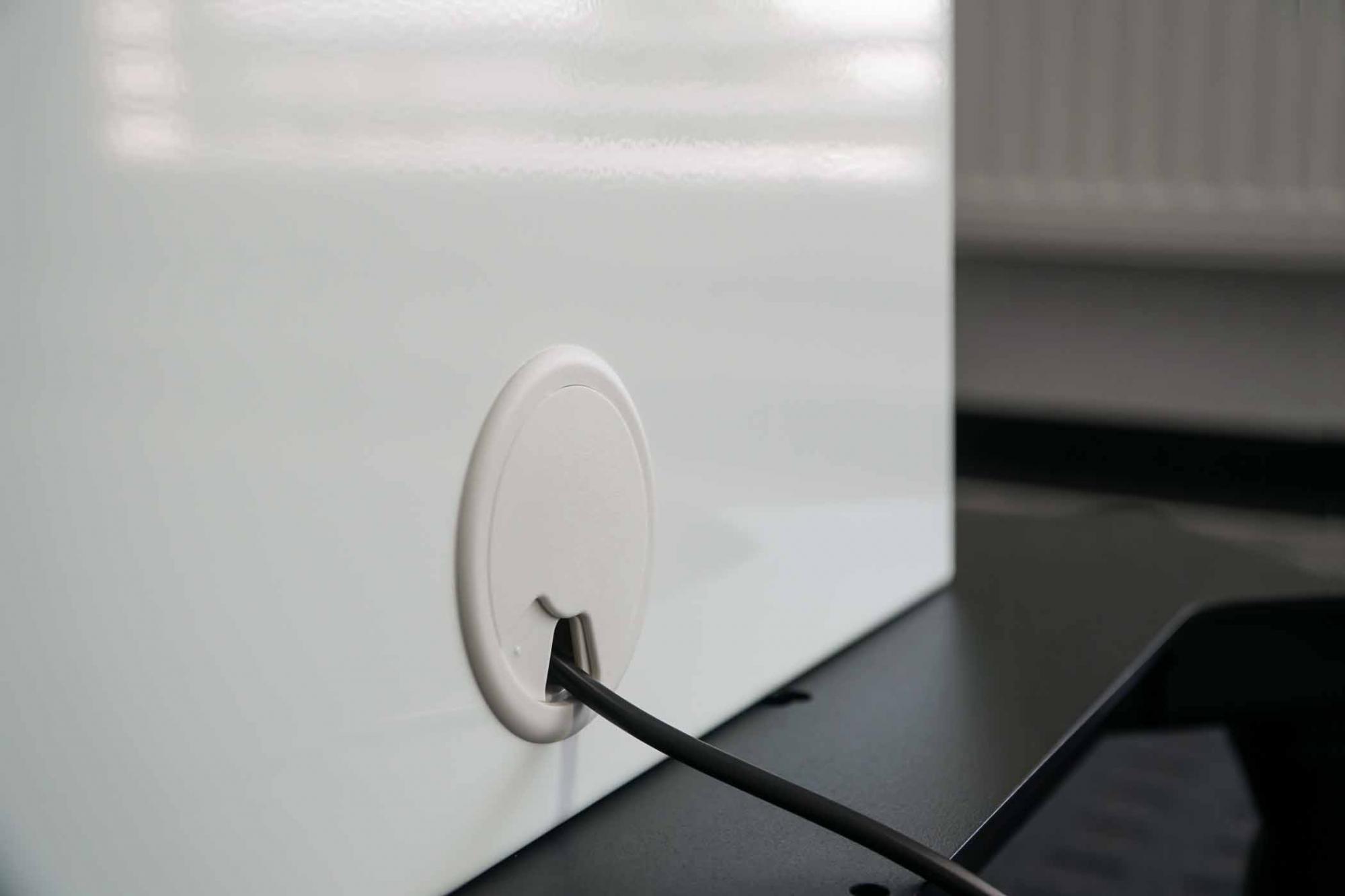

  • Integrated cable management
  • Accessible
  • Load capacity for almost any display size
  • Suitable for lightweight walls (except MOW-XL 120 W)

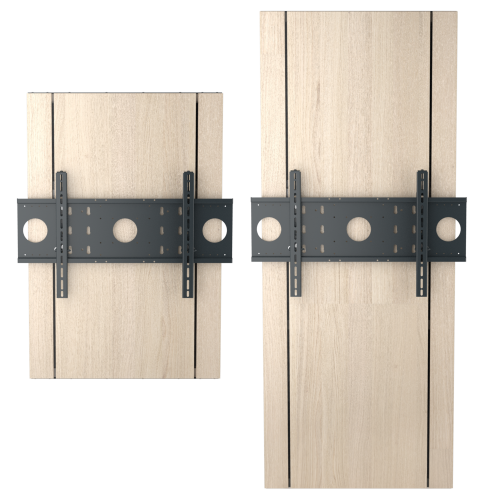

  • Optically customizable

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon single display
Single display
Icon multi display
Multi display
Icon maximum load
Max. load
264.6 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Configuration

Item numberN/A
Product nameMOW-XL motorized display mount for wall and wall-floor mounting Accommodates one display up to 98".
Vesa horizontal100 mm - 800 mm
Vesa vertical100 mm - 600 mm
Frame for all86" max.
Vertical travel50 cm
Center to floor distance 1130 mm - 1780 mm44.5" - 70.1"
Load capacity120 kg 264.6 lbs
Width 800 mm31.5"
Height 2000 mm78.7"
Depth 160 mm6.3"
Weight 81 kg178.6 lbs
Packages Package dimensions WxHxD Package weight
2070 x 300 x 1000 mm / 81.5 x 11.8 x 39.4"117 kg / 257.9 lbs
