Screen with motor - "Congress-S

Ceiling mounting, available in different formats

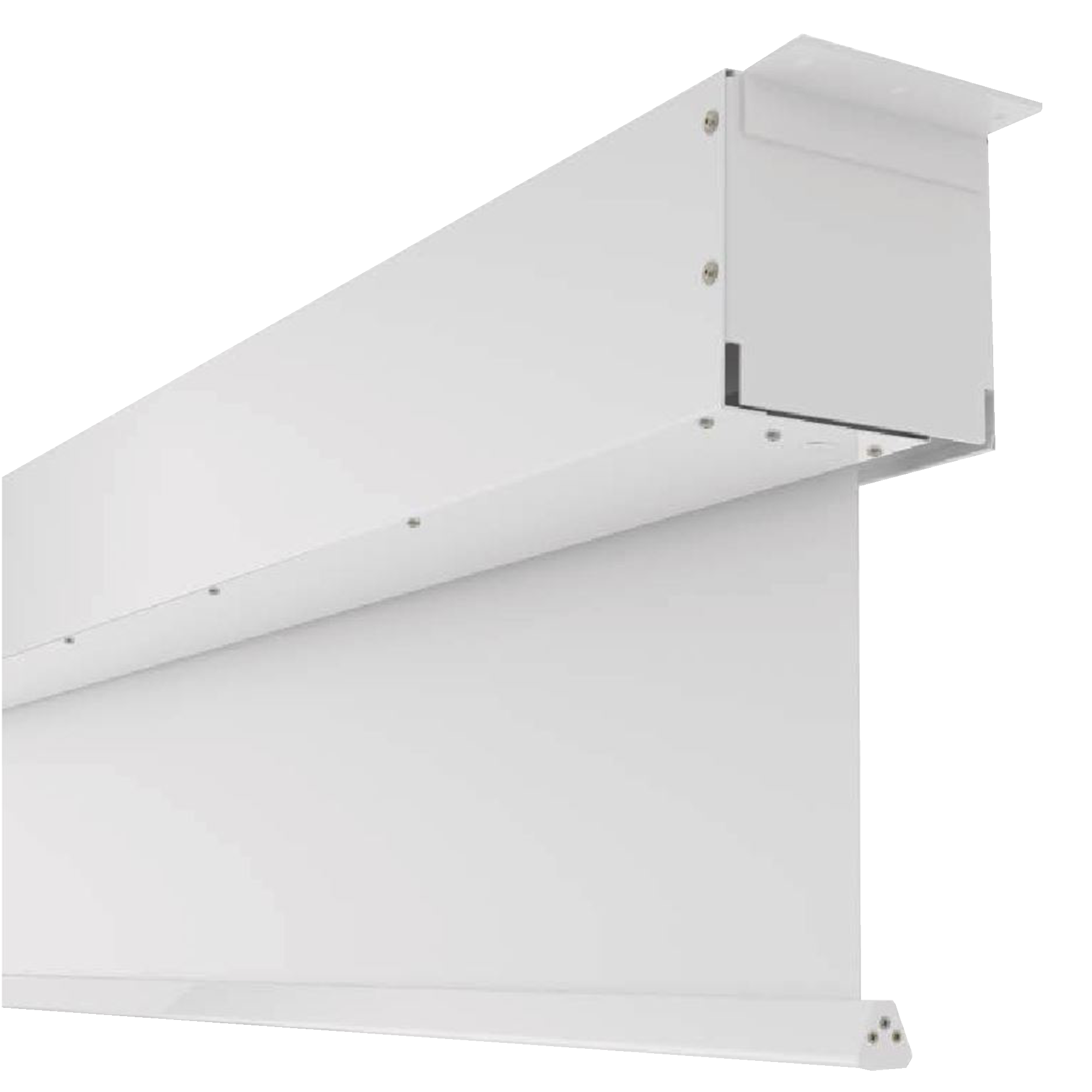

Product image Screen with motor - "Congress-S

Product description

The Congress-S is an extremely high-quality projection screen, which is ideal for use in the field of congresses and events. It is characterized by its special sizes up to 10 meters and its technical equipment.

Depending on the format of the projection screen, the Congress-S is manufactured up to W 600 x H 400 cm in a robust sheet steel housing in RAL 9016 Traffic White (15 x 15 or 20 x 20 cm), from a format larger than 600 cm width in a galvanized housing (30 x 30 or 40 x 40 cm) Other colors are optionally possible according to RAL Classic, please contact us!

The projection screen Congress-S is designed for ceiling mounting by mounting brackets on the outer sides of the housing. Up to a size of W 600 x H 400 cm (housing 15 x 15 or 20 x 20 cm) there is a revision possibility .without disassembly of the housing. From a size larger than 600 cm width (housing 30 x 30 or 40 x 40 cm) this revision possibility is omitted.

Important note on DIN 56950-4 - All projection screens over 5 meters are equipped with a safety catch and a testable safety limit switch as standard. The built-in switch meets the requirements demanded in stage technology. Thus, all necessary criteria for the tendering and testing of mechanical equipment in operating facilities are already fulfilled in our standard design.


Features

  • formats up to 1.000 x 600 cm available
  • for ceiling mounting
  • wall bracket optionally available
  • pre-assembly frame up to 600 x 400 cm optionally available
  • Construction DIN 56950-4: 2015 Safety requirements and tests for prefabricated picture walls

Icon wallmounted system
Wall mounted
Icon ceilingmounted system
Ceiling mounted

Configuration

Item numberN/A
Product nameScreen with motor - "Congress-S
Product sheet DE
Image PDF download Image show PDF
Product sheet EN
Image PDF download Image show PDF
