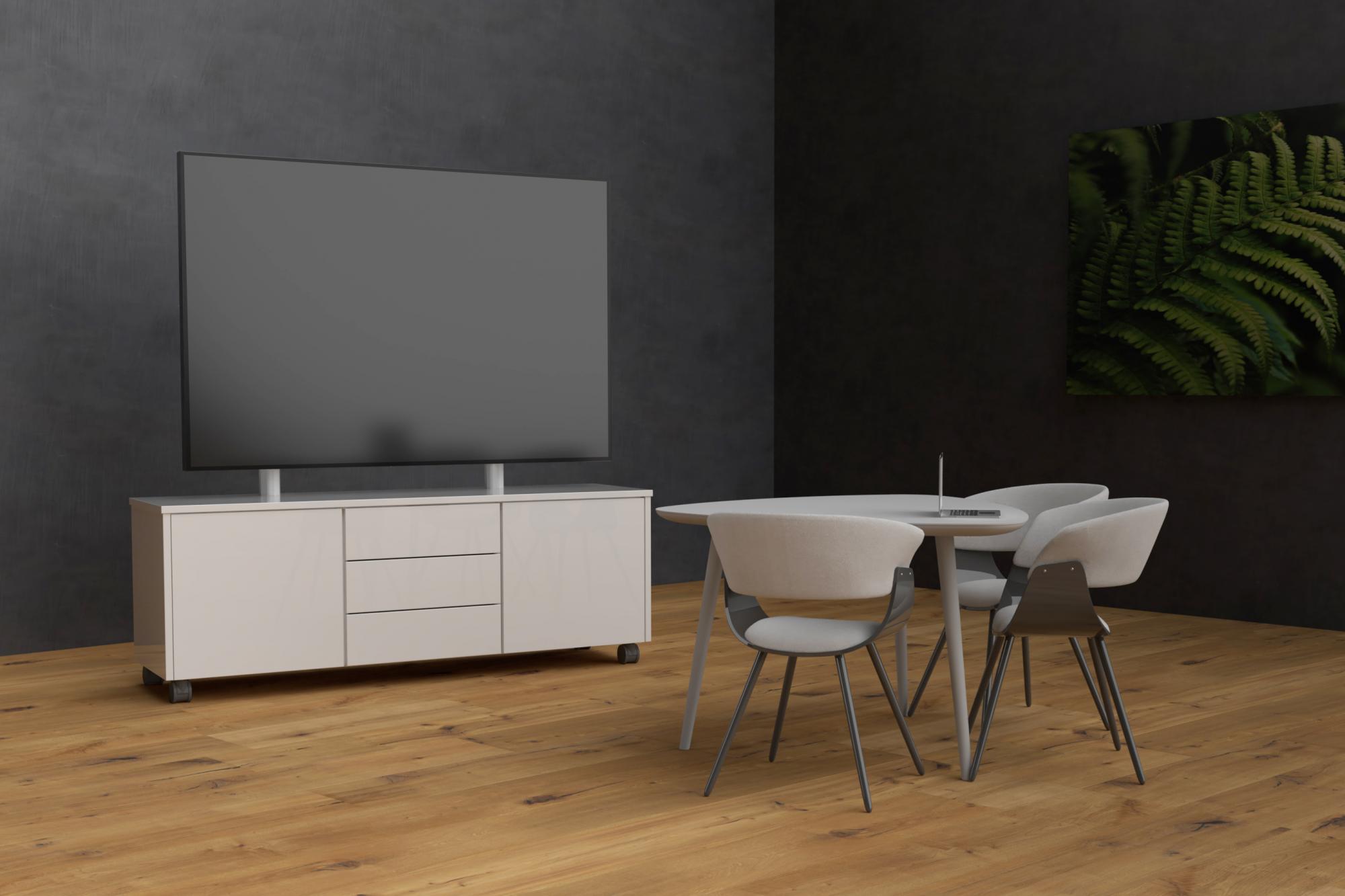

Sideboard with motorized height-adjustable display holder - "Media Side select Premium".

Media Side select Premium
Product image Sideboard with motorized height-adjustable display holder - "Media Side select Premium".
Product image Sideboard with motorized height-adjustable display holder - "Media Side select Premium". -1

Product description

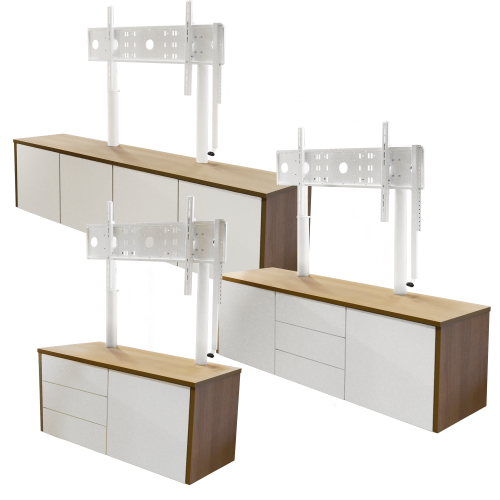

The great variety of variations and quality make the Media Side select Premium. You can choose between three carcase lengths. The Media Side select Premium double has, as the name suggests, two cabinet units. The Media Side select Premium triple has three cabinet units and the Media Side select Premium quadruple four cabinet units.

The integrated lifting columns with a lifting distance of 50 cm remain in the center of the sideboard in each of the above versions.

All variants are equipped with doors in the standard version. Optionally, you can also have your cabinet units equipped with drawers.
The display up to 98" is motorized height adjustable about 50 cm. A stepless adjustment of your display up to max. 130 kg is ensured by 2 lift motors.

An up and down switch is attached to the LCD mount and is discreetly located directly below your display. This makes handling as easy as possible for you.

To guarantee you a flawless look, the system's own cable management is concealed inside the sideboard between a partition and the removable rear panel. This gives you the option of neat cable routing and a cable connection that is not visible.
For the connection of technology within the cabinet segments are cable bushings that run behind the partition. For the display connection is a cable duct behind the left motorized lifting column.

For the handleless furniture front, the doors are equipped with a "push to open" function.


Features

  • Made in Germany
  • For a display up to max. 98"
  • Integrated cable management
  • Doors or drawers
  • Load capacity up to max. 130 kg
  • Motorized 50 cm height adjustable
  • Optically individually adjustable
  • 19" rails for 19" technology optional

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon single display
Single display
Icon maximum load
Max. load
286.6 lbs
Icon maximal VESA
Max. Vesa
1250 x 600

Configuration

Item numberN/A
Product nameSideboard with motorized height-adjustable display holder - "Media Side select Premium".
Vesa horizontal100 mm - 1250 mm
Vesa vertical100 mm - 600 mm
Frame for all98" max.
Vertical travel50 cm
Center to floor distance 800 mm - 1300 mm31.5" - 51.2"
Load capacity130 kg 286.6 lbs
