Light screen with scissor joints - "Cabinet-A"

For installation e.g. in a sideboard, available in various formats

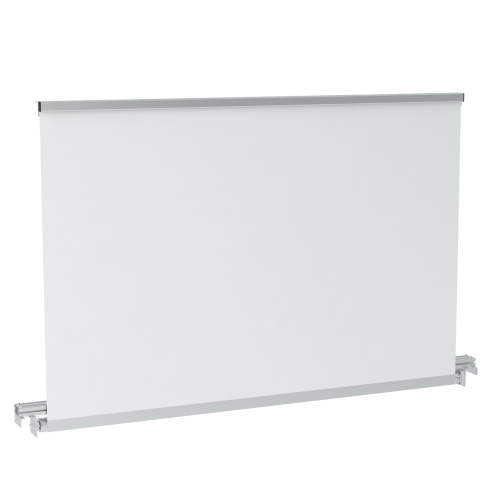

Product image Light screen with scissor joints - "Cabinet-A"

Product description

The Cabinet-A projection screen is a built-in system for mounting in sideboards, drawers or media cabinets, for example. Due to the low installation depth, the very space-saving variant can be almost integrated into the environment. The projection screen is mounted on an aluminum mounting bracket.
You can get the built-in projection screen in different formats and designs.

The installation takes place in sideboards, drawers or any other installation possibilities provided by the customer. A profile can be attached to the upper end strip of the Cabinet-A (with max. 500 g per running meter). The profile enables you to completely close the projection screen with the built-in furniture or similar when it is retracted and it is hardly visible.


Features

  • Formats up to 350x300 cm
  • aluminum mounting bracket 10x4 cm
  • installation depth: 13 cm
  • installation height: up to W 250 cm = 28 cm
  • Installation height: up to W 400 cm = 30 cm
  • Screen surface Polar GS - flame retardant, meets the requirements of DIN 4102 - B1
  • Construction DIN 56950-4: 2015 Safety requirements and tests for prefabricated screen walls

Configuration

Item numberN/A
Product nameLight screen with scissor joints - "Cabinet-A"
