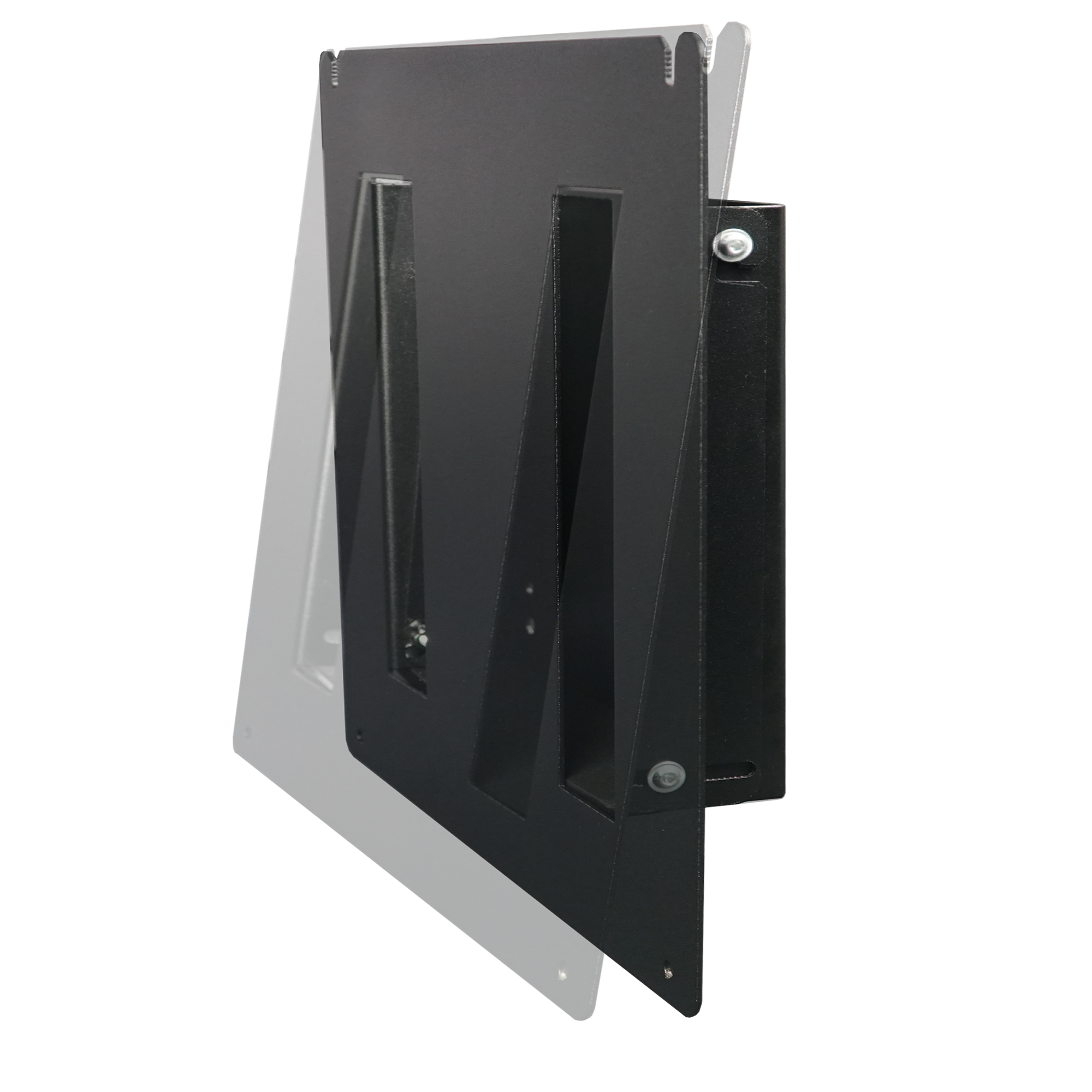

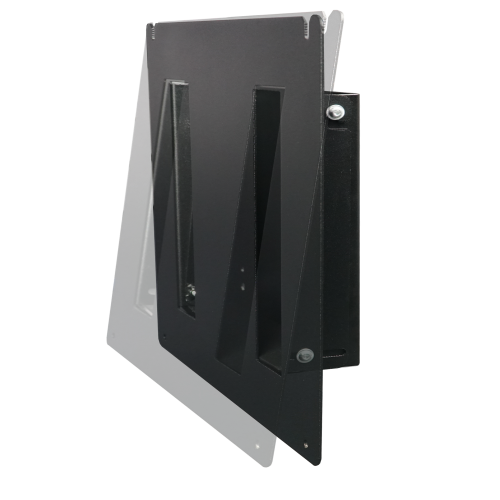

The wall mount for the Microsoft Surface Hub 2 with a VESA mount of 350 x 350, allows an optimal viewing angle on the display with its tilt adjustment of 8°.
The bracket system has dimensions of H/W/D: 38x40x6 cm and is fixed firmly to the wall with a maximum of 4 screws.
The wall mount for SH2 is made of powder-coated sheet steel in RAL 9005 deep black in fine structure.
|Vesa horizontal||350 mm|
|Vesa vertical||350 mm|
|Load capacity||50 kg||110.2 lbs|
|Weight||3,5 kg||7.7 lbs|
|Base color||RAL 9005 deep black|
|Packages||Package dimensions WxHxD||Package weight|
|83500009||400 x 100 x 400 mm / 15.7 x 3.9 x 15.7"||6 kg / 13.2 lbs|
