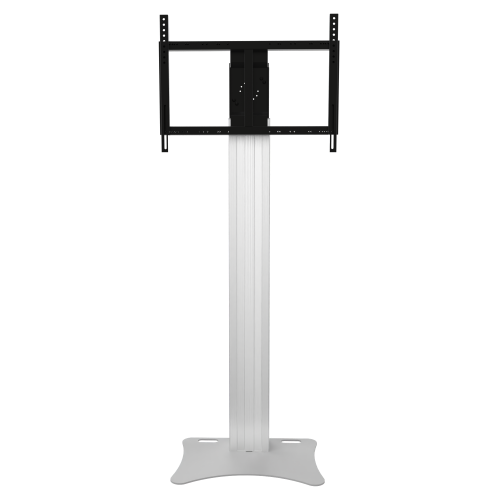

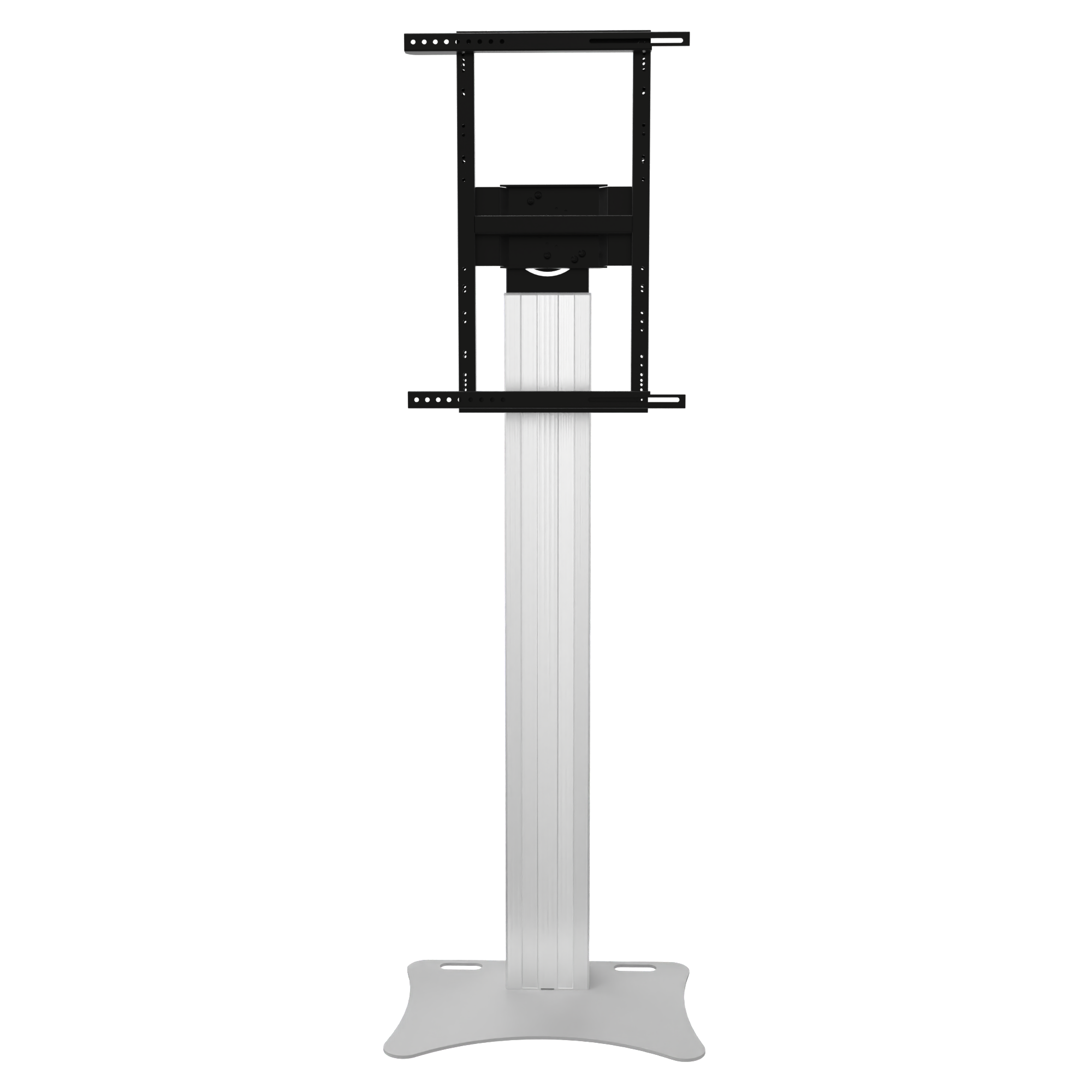

Digital signage monitor or display stand

Landscape- or portrait format, rotatable
Item number: SCETANHVPLP
Product image Digital signage monitor or display stand SCETANHVPLP
Product image Digital signage monitor or display stand SCETANHVPLP Product image Digital signage monitor or display stand SCETANHVPLP Product image Digital signage monitor or display stand SCETANHVPLP Product image Digital signage monitor or display stand SCETANHVPLP Product image Digital signage monitor or display stand SCETANHVPLP Product image Digital signage monitor or display stand SCETANHVPLP Product image Digital signage monitor or display stand SCETANHVPLP

Product description

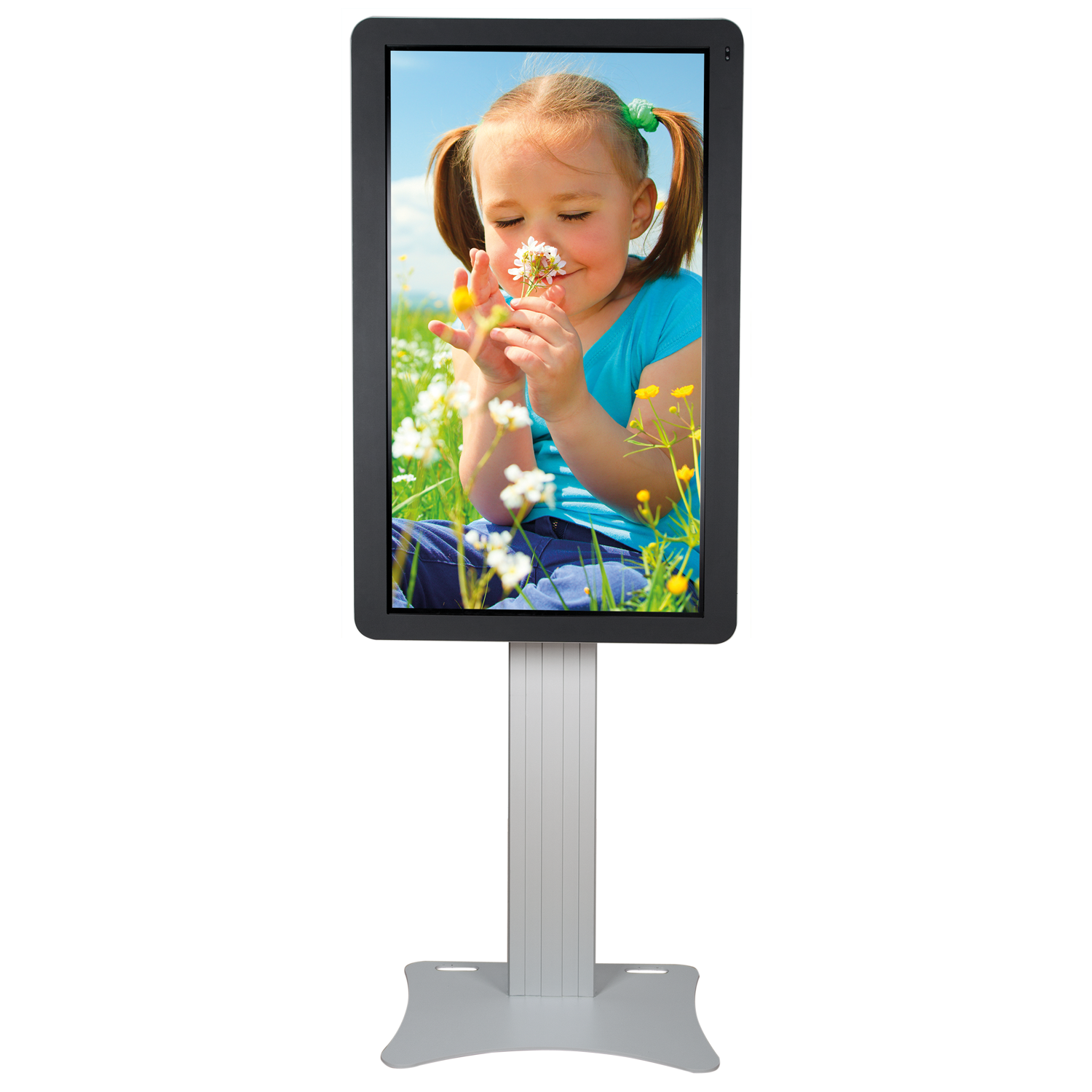

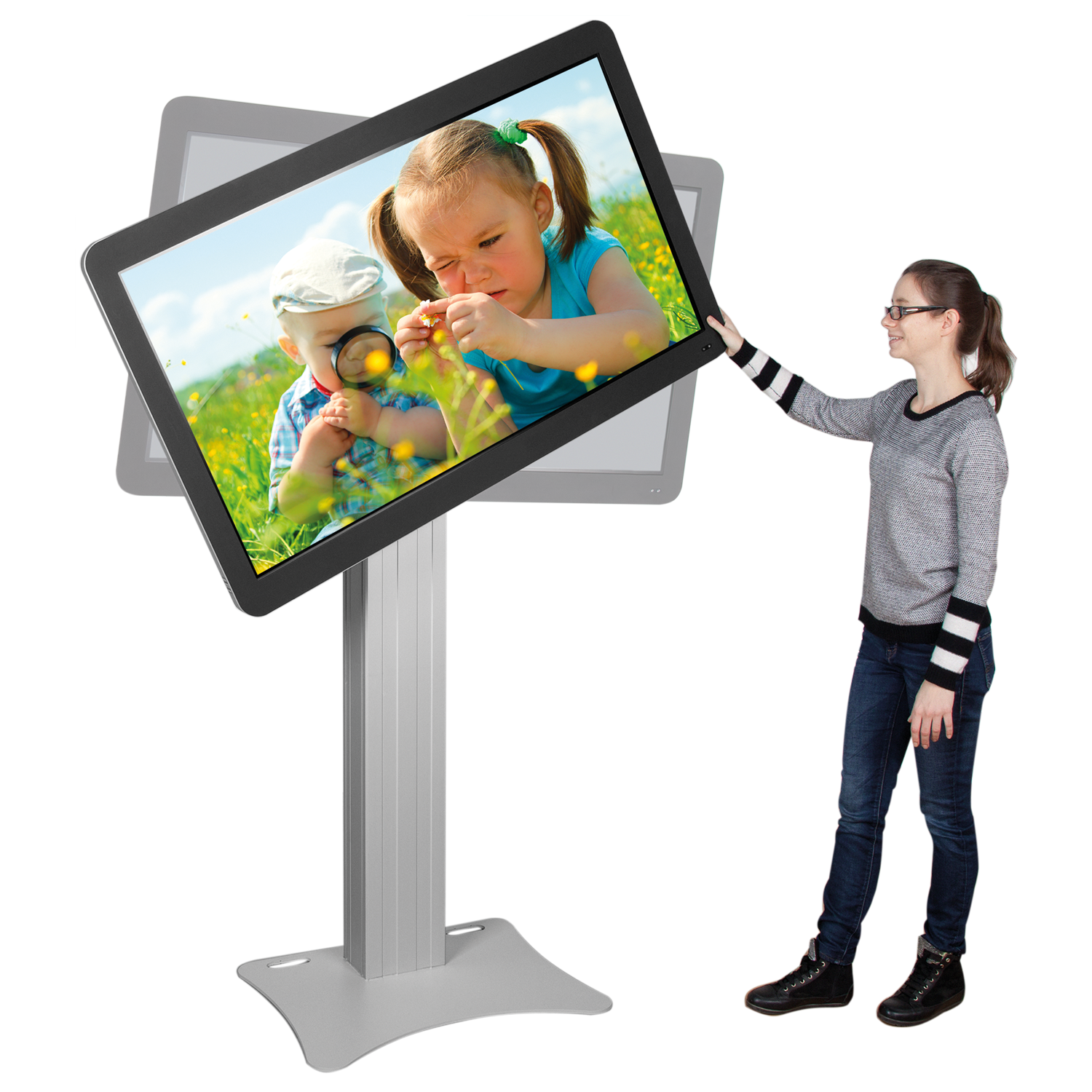

Digital signage solution - monitor stand for use with digital signage displays with a screen diagonal of 55"-86" . The monitor stand is equipped with a central aluminum column in a fixed height. Mounted above the center column is a display mount bracket for digital signage monitors showing your digital ad. Switch easily and quickly between landscape and portrait format by simply rotating the display.


Features

  • Frame for holding55"-86" digital signage monitors
  • For mounting on concrete or stud walls

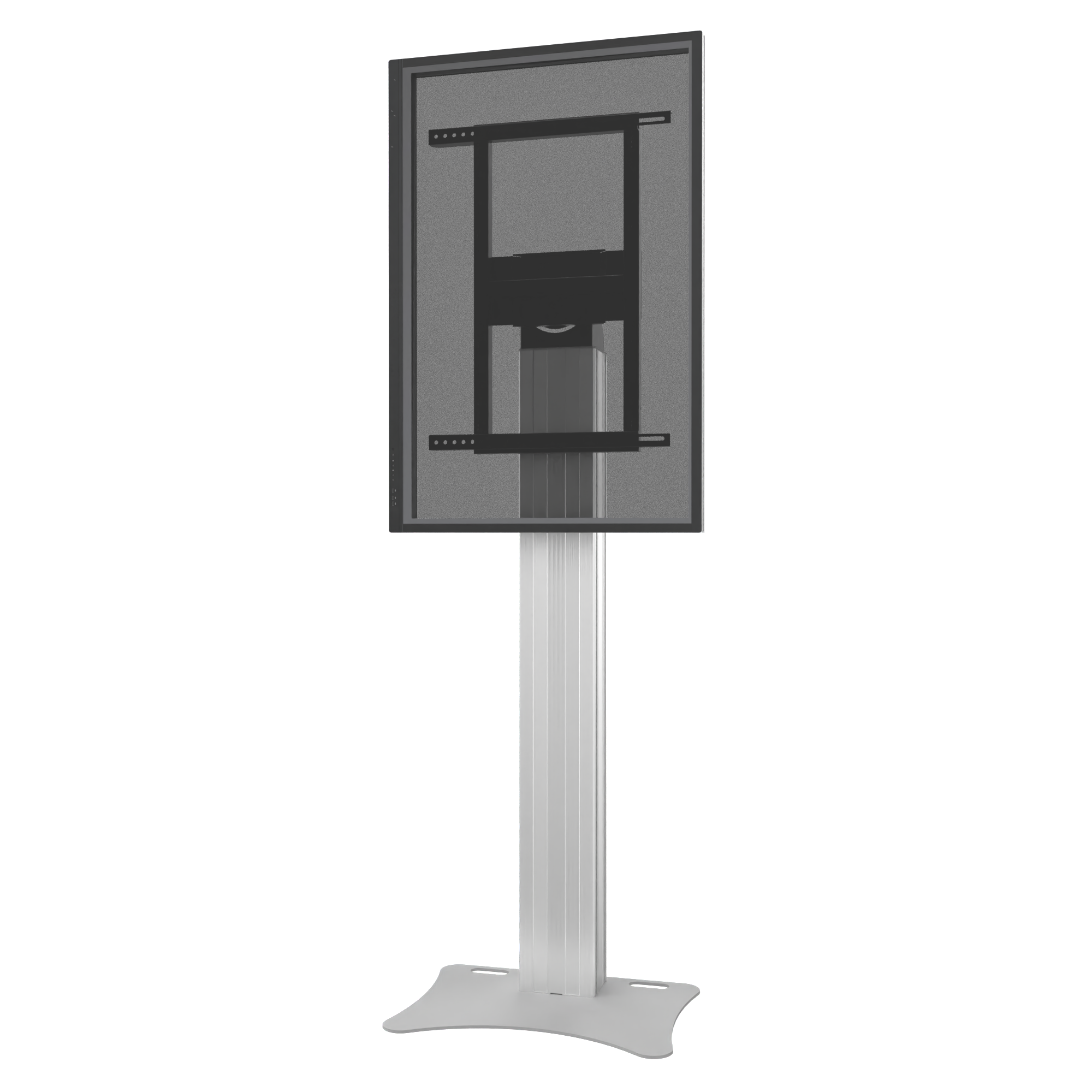

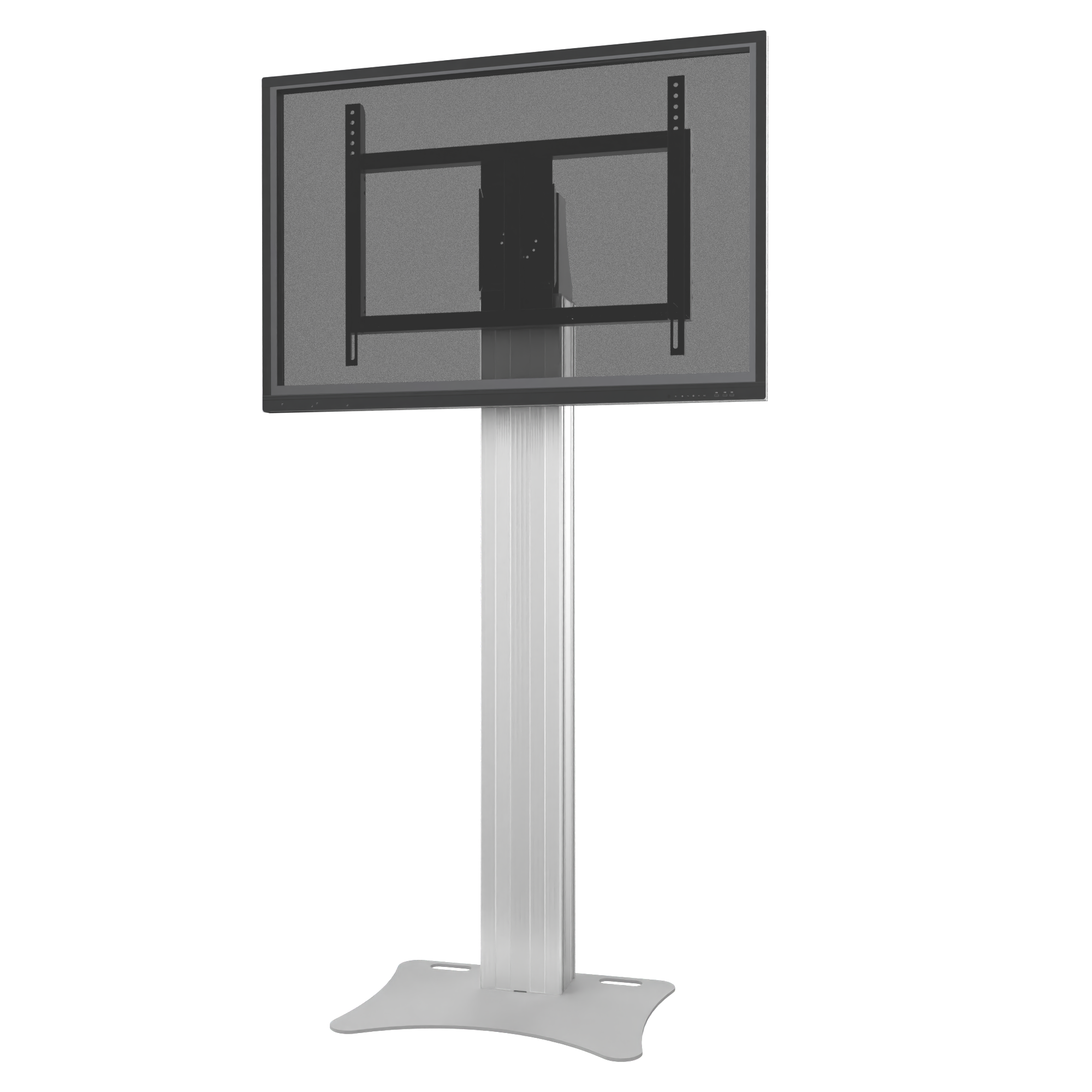

  • Comfortable change between landscape and portrait format
  • 0,8 cm thick floor plate, RAL 9006 white aluminum
  • 4 floor leveling feet
Request a quotation!
Icon display mounts
Display mount
Icon platform stand
Free-standing
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
440.9 lbsIcon maximal VESA
Max. Vesa
800 x 600
Item numberSCETANHVPLP
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 86"
Center to floor distance 1950 mm76.8"
Load capacity200 kg 440.9 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AFSCETALP880 x 470 x 240 mm / 34.6 x 18.5 x 9.4"18 kg / 39.7 lbs
CC170W1985 x 270 x 200 mm / 78.1 x 10.6 x 7.9"29,9 kg / 65.9 lbs
PSTSCETA750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 69,7 kg / 153.7 lbs
Quick snap lock
Detail image Quick snap lock SCETANHVPLPWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

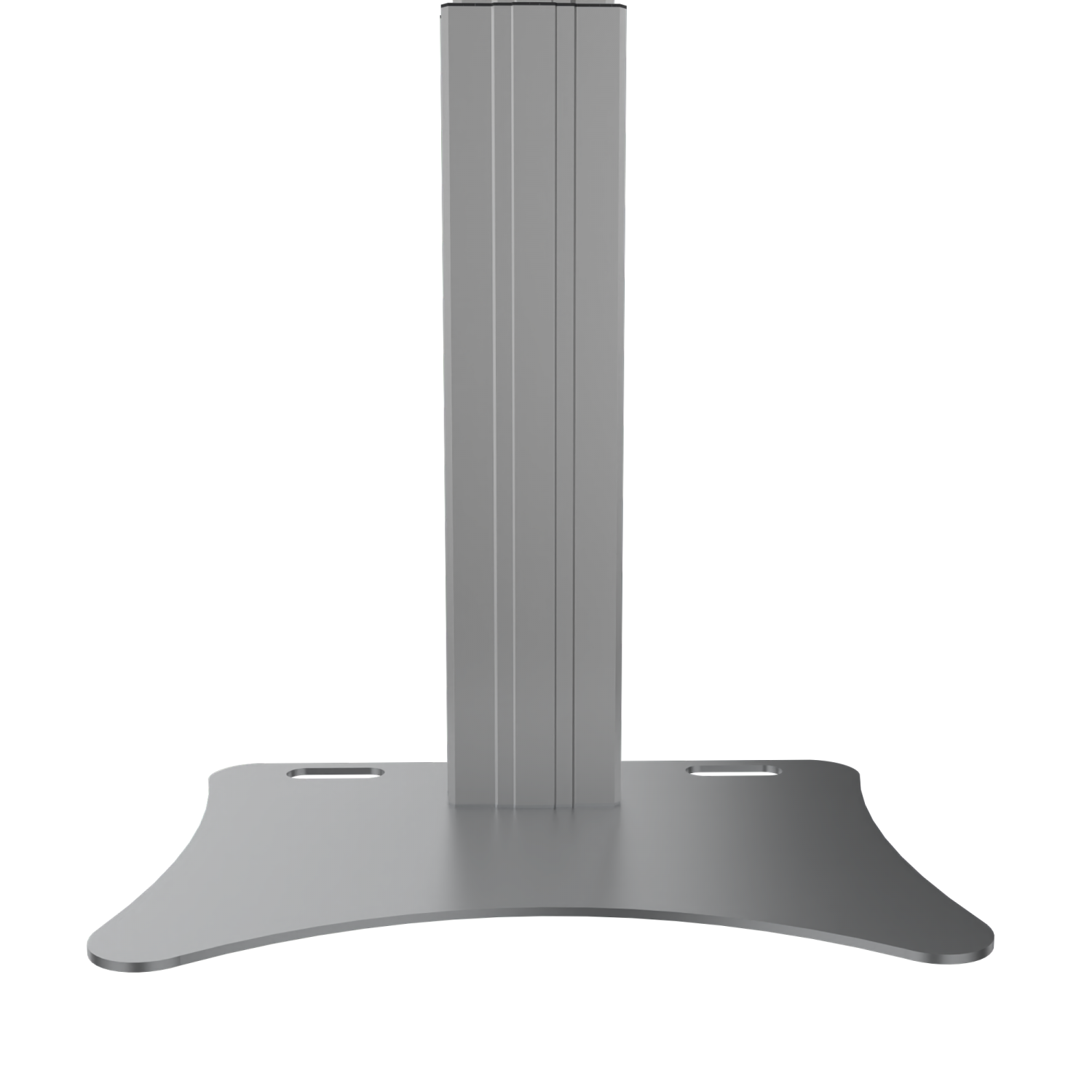

8 mm strong floor plate
Detail image 8 mm strong floor plate SCETANHVPLPThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETANHVPLPBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCETANHVPLPThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
