Media column for mounting display up to 98" "Smart-S", free-standing

freestanding, with base plate
Item number: 87000200

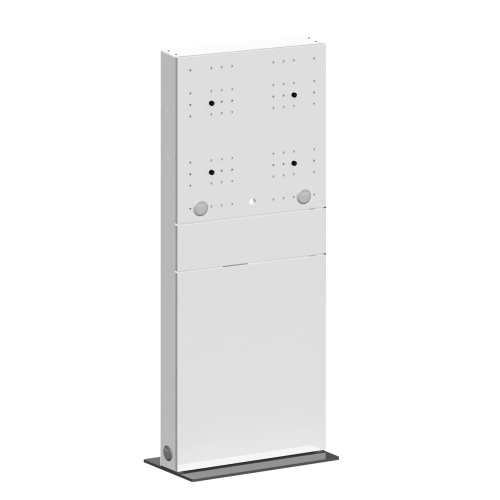

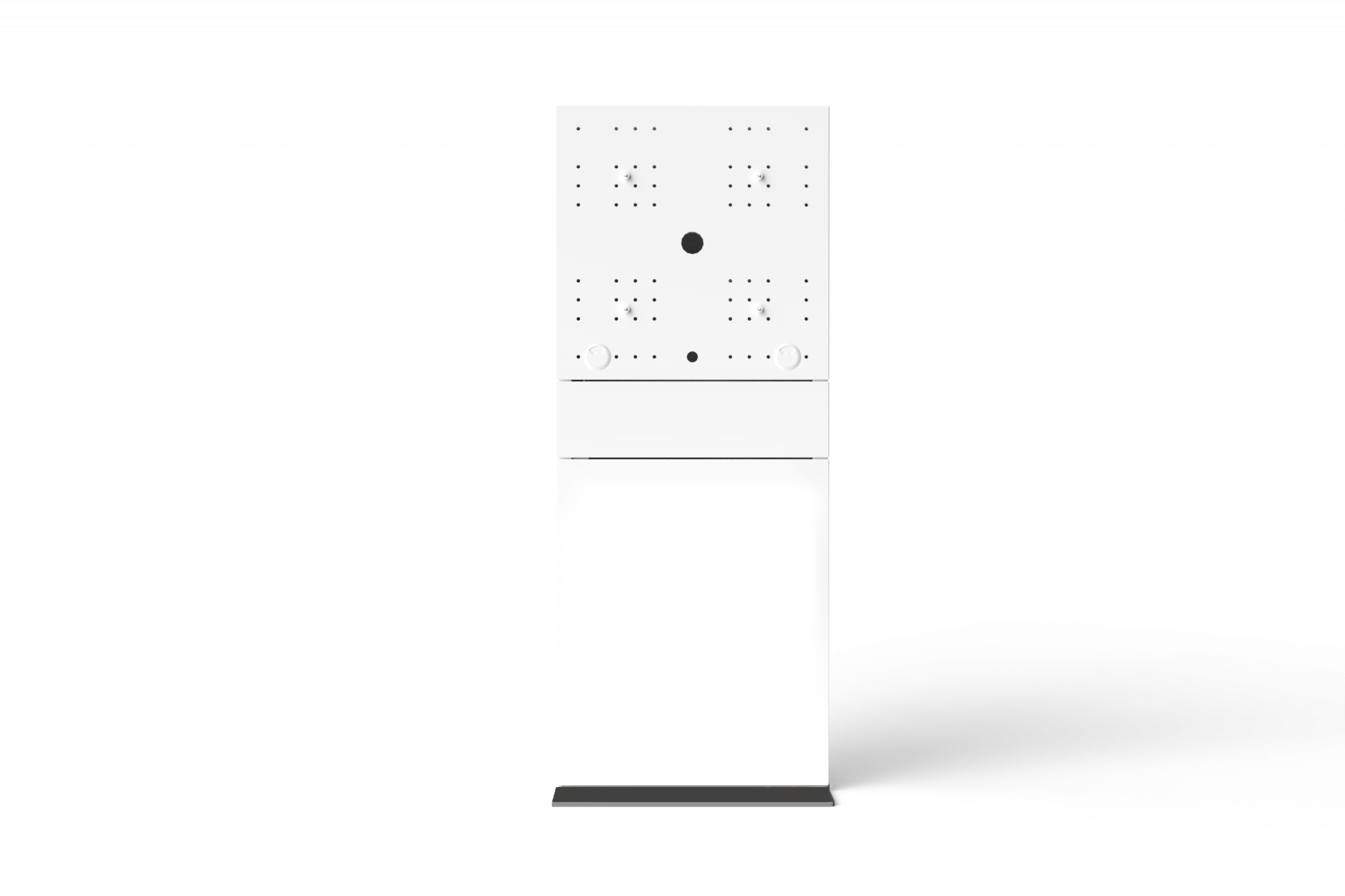

Product image Media column for mounting display up to 98" "Smart-S", free-standing 87000200
Product image Media column for mounting display up to 98" "Smart-S", free-standing 87000200-1 Product image Media column for mounting display up to 98" "Smart-S", free-standing 87000200-2 Product image Media column for mounting display up to 98" "Smart-S", free-standing 87000200-3 Product image Media column for mounting display up to 98" "Smart-S", free-standing 87000200-4

Product description

The Mediastele Smart impresses with its elegant appearance and a wide range of optional equipment modules. It is available in three versions, each designed for displays up to 98 inches in size. The Mediastele Smart-S is characterized by its particularly slim design and is suitable for a load capacity of up to 100 kilograms. The Mediastele Smart-M offers a balanced solution with a slightly wider column, also for a load capacity of 100 kilograms, and also impresses with a particularly low bottom edge of the screen - when using a 98-inch display, this is only approx. 120 cm, which makes it ideal for applications with a seated audience or barrier-free presentations. The Smart-XL is the right choice for larger or heavier monitors - it supports up to 150 kilograms and offers maximum stability.

The standard version of the media column has a white powder-coated body (RAL 9016 traffic white). The robust base plate and accessories are finished in a sophisticated anthracite gray (RAL 7016), creating an elegant contrast. The front panels in platinum white decor harmoniously round off the clear, modern appearance.

For individual design options, the powder coating can be finished in all RAL Classic colors on request. Other decor variants are available on request - ideal for an appearance that fits perfectly into your room concept.
Delivery is assembled!


Features

  • Made in Germany
  • Display up to max. 98"
  • Integrated cable management
  • Load capacity up to 100 kg
  • Customizable appearance

Icon display mounts
Display mount
Icon platform stand
Free-standing
Icon fixed height
Fixed height
Icon single display
Single display
Icon multi display
Multi display
Icon maximum load
Max. load
220.5 lbs
Icon maximal VESA
Max. Vesa
600 x 600

Configuration

Item number87000200
Vesa horizontal200 mm - 600 mm
Vesa vertical200 mm - 600 mm
Frame for all86"
Load capacity100 kg 220.5 lbs
Width 720 mm28.3"
Height 1810 mm71.3"
Depth 143 mm5.6"
Weight 73 kg160.9 lbs
Packages Package dimensions WxHxD Package weight
870002001200 x 800 x 1950 mm / 47.2 x 31.5 x 76.8"106 kg / 233.7 lbs
