VSM video system mobile to accommodate 1 display up to 86" or 2 displays up to 55".

manually height adjustable, in 7 steps, over 24 cm, adjustable by ratchet
Item number: 83400020

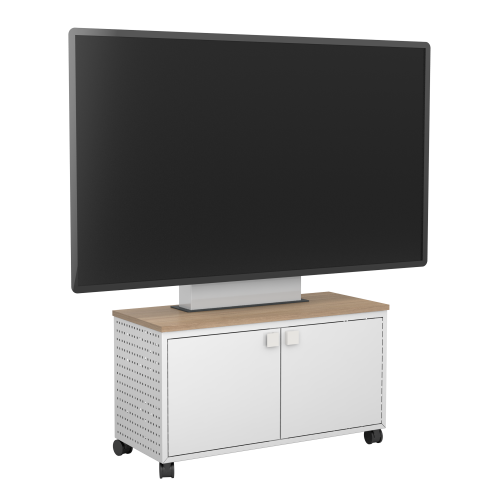

Product image VSM video system mobile to accommodate 1 display up to 86" or 2 displays up to 55". 83400020

Product description

The VSM is the ideal media furniture for your video conferences. Thanks to its smooth-running castors, you can easily move it to another room if necessary.
It can be equipped with one display up to 86″ or with two displays with max. 55". Due to the color design options, the VSM can be integrated into any room concept.

In our standard version, the VSM is equipped with a universal mount according to VESA standard 100×100 - 800×600 to accommodate a display up to 86". It has 4 easy-roll casters, 2 of which are lockable.

So that you can set the perfect height for your display, the VSM allows you to adjust the height when installing 7 different grid positions. So you can adjust a display up to max. 100 kg in a range of over 24 cm.

The equipment cabinet with 19" rails (2x 11 U), including shelf, serves you to accommodate the video conferencing equipment. To guarantee you an immaculate look, the system's own cable management for display and camera feed is carried out inside the column. There are two cable outlets in the base. The removable back panel makes the inside of the column easily accessible for you.


Features

  • Made in Germany
  • For a display up to max. 86"
  • Freestanding
  • Integrated cable management
  • Load capacity up to max. 100 kg
  • For two displays up to max. 55"
  • Adjustable in 7 steps, over 24 cm, by rastering
  • Optically individually adaptable

Icon display mounts
Display mount
Icon platform stand
Free-standing
Icon manual height adjustable
Manual height adjustable
Icon single display
Single display
Icon maximum load
Max. load
220.5 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Configuration

Item number83400020
Vesa horizontal100 mm - 800 mm
Vesa vertical100 mm - 600 mm
Frame for all86" max.
Load capacity100 kg 220.5 lbs
Width 1200 mm47.2"
Height 1570 mm61.8"
Depth 500 mm19.7"
Weight 70 kg154.3 lbs
Packages Package dimensions WxHxD Package weight
834000201400 x 1760 x 1000 mm / 55.1 x 69.3 x 39.4"133 kg / 293.2 lbs
