Display housing for wall mounting "istand 3"

for wall or ceiling mounting

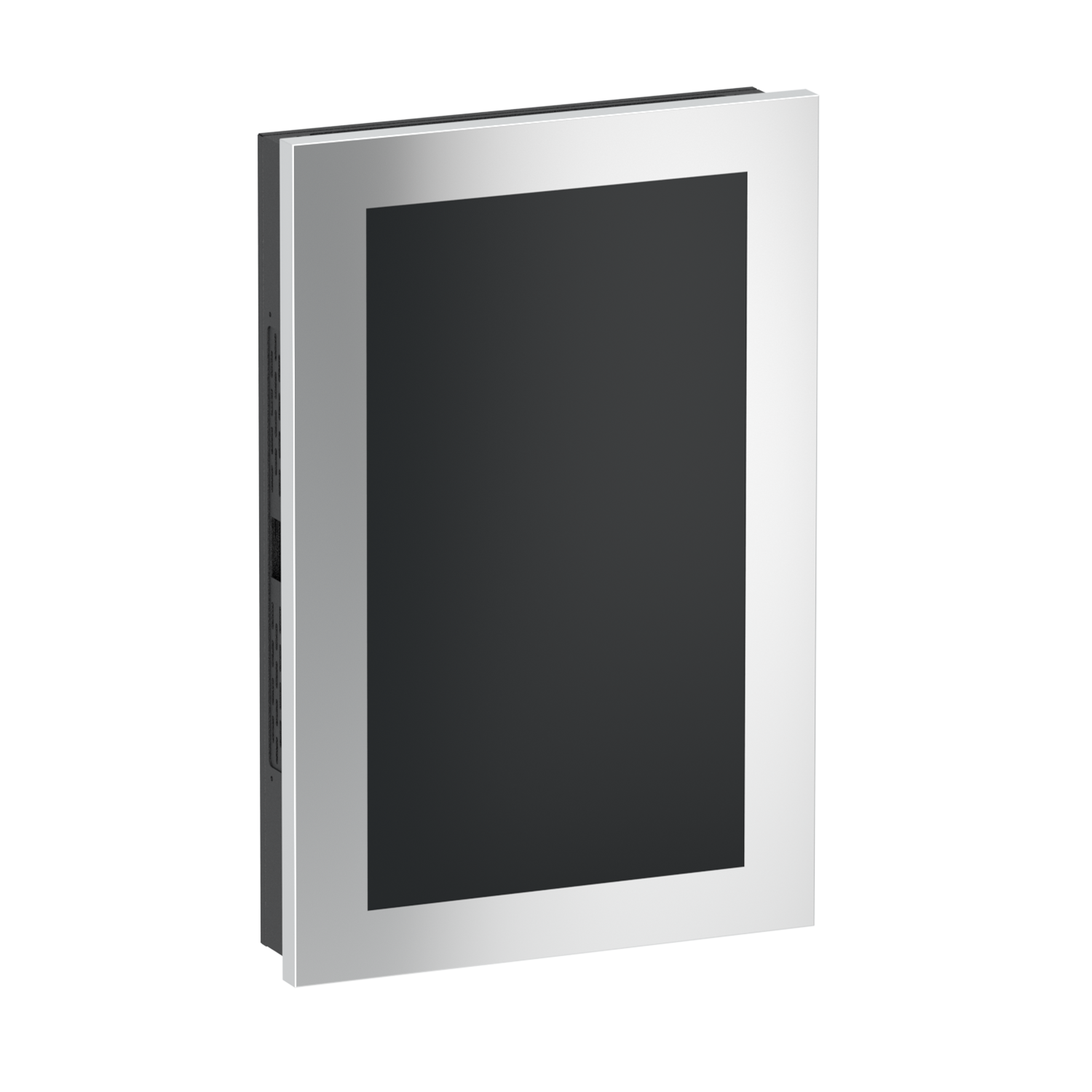

Product image Display housing for wall mounting "istand 3"

Product description

The istand® 3 display enclosure can be used in any indoor area where information is to be transmitted passively or interactively. Depending on the circumstances, the display housing is available for direct wall mounting in landscape format for a display up to 55" or for ceiling mounting, including ceiling bracket, in portrait and landscape format for a display up to 47".

The istand® 3 display housings can be used as digital signage or advertising, but also to transmit information interactively via touch display in airports, banks, shopping centers, reception halls or hospitals.
The requirements of building material class B1, flame retardant are met according to DIN 4102.

The istand® 3 display housings are made of 1.5 mm sheet steel. They are optionally supplied with a glass front for a passive screen or with a metal front with a cut-out for an interactive touch display.
Both variants have a lockable rear to protect the technology inside. Inside the istand® 3 display enclosures are integrated mounting elements for holding the display, a mini PC, and a WLAN device. Ventilation slots enable continuous 24/7 operation of the info terminals.
Mounting on the ceiling is done using an HKS ceiling bracket made of a rectangular tube (80 x 60 mm) with a cover hood. In the housing is an integrated latch snap-in system for easy mounting of the housing to the ceiling mounting tube, with screw connection. Cable outlets inside the istand® 3 display housing allow for invisible connection to the ceiling. The wall mounting is done via a corresponding device on the back.
Depending on the requirements, we also manufacture the display enclosures to measure! Talk to us gladly!
HKS has the building material of the stelae for the touch display tested and tested by the Materialprüfungsamt. It was confirmed that the requirements for building materials of class B1 according to DIN 4102-1 are met and that the material is flame retardant.


  • Made in Germany
  • Wall or ceiling mounting
  • Integrated cable management
  • Optically customizable
  • For 55 "or 47 "display
  • Other display sizes on request!
  • Suitable for continuous operation (24/7)
  • Heavily flammable according to DIN 4102-1

Icon wallmounted system
Wall mounted
Icon ceilingmounted system
Ceiling mounted
Icon fixed height
Fixed height
Icon single display
Single display


Item numberN/A
Product nameDisplay housing for wall mounting "istand 3"
