Wall mounted 2 pylon sliding system for displays from 65-86"

manually height-adjustable with pulley and counter weight, with 2 whiteboard wings
Item number: PYFKL-IFPD-W
Product image Wall mounted 2 pylon sliding system for displays from 65-86" PYFKL-IFPD-W
Product image Wall mounted 2 pylon sliding system for displays from 65-86" PYFKL-IFPD-W Product image Wall mounted 2 pylon sliding system for displays from 65-86" PYFKL-IFPD-W Product image Wall mounted 2 pylon sliding system for displays from 65-86" PYFKL-IFPD-W

Product description

This manually height-adjustable pylonsystem with pulley and whiteboard wings is compatible with all touch screen displays available on the market from 65" to 86" screen diagonal.

The two aluminum pylons are mounted on the wall and floor, the display brackets slides between these pylons by pulley and counter weight. This ensures that every user can work and present at the ergonomically best height.

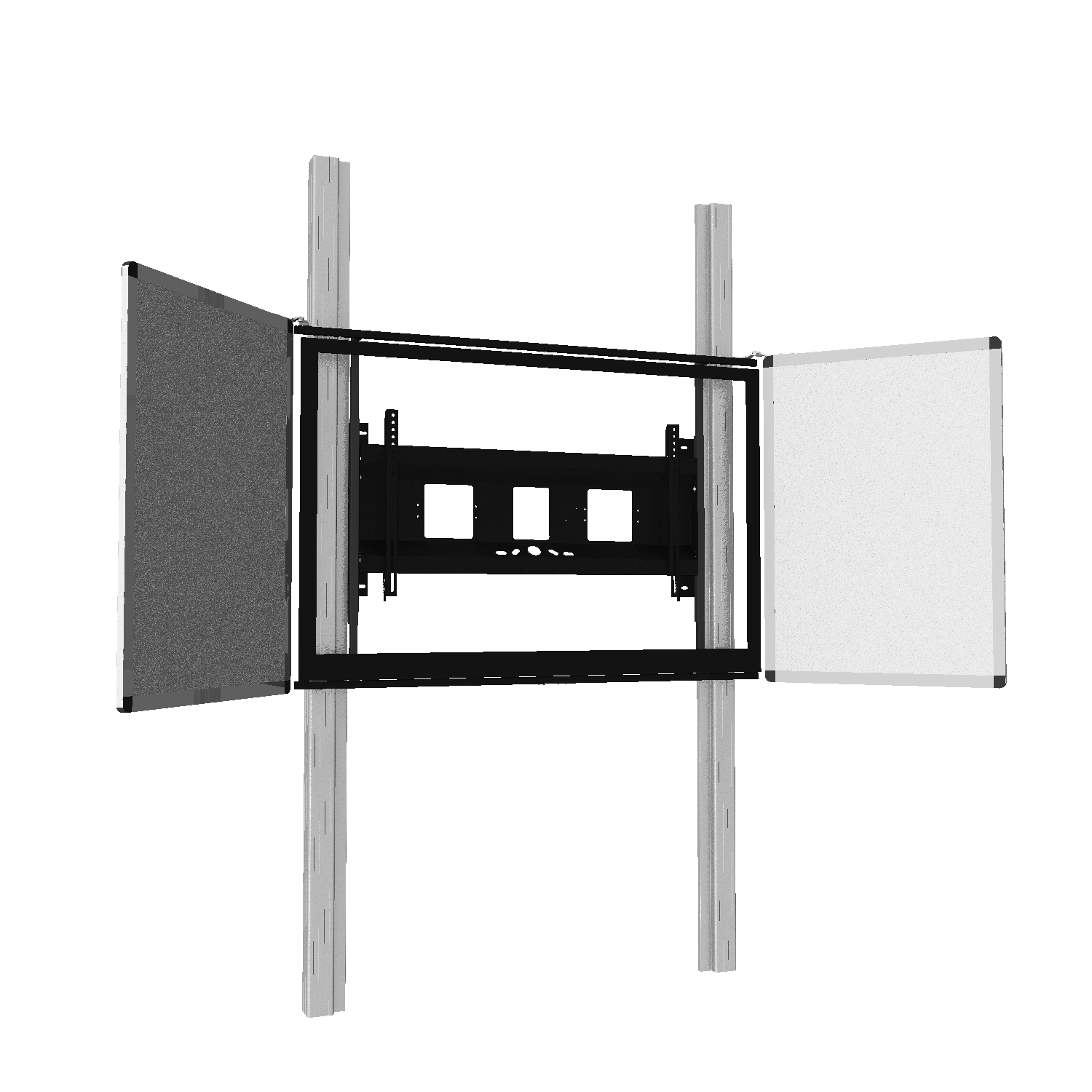

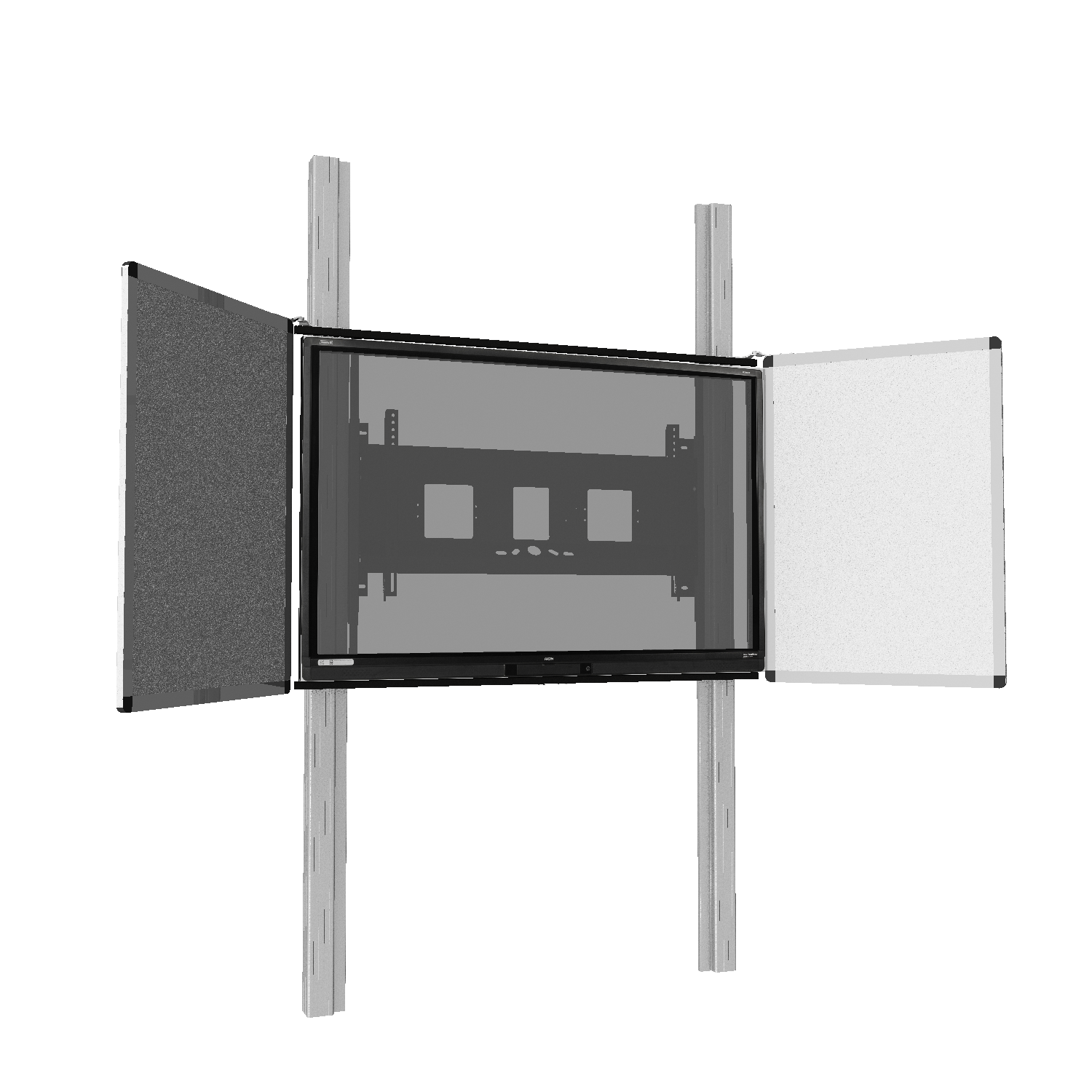

To the right and left of the touchscreen display are two whiteboard wings, which are magnetic, can be written on and can be wiped dry. The wings are encased in aluminum profiles, which are waterproof glued and come in a black anodized colour. A handle is supplied as standard for height adjustment.


Features

  • Please indicate the model of the monitor when placing your order
  • Manually height-adjustable system with 2 pylons for floor and wall mounting
  • Pylon length 2900 mm or 2600 mm
  • Height adjustment with counterweights and Pulley
  • 2 whiteboard wings which are magnetic, can be written on and are dry erasable.
  • All connections on the display are freely accessible

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon manual height adjustable
Manual height adjustable
Icon single display
Single display
Icon maximal VESA
Max. Vesa
800 x 600
Item numberPYFKL-IFPD-W
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all65" - 86"

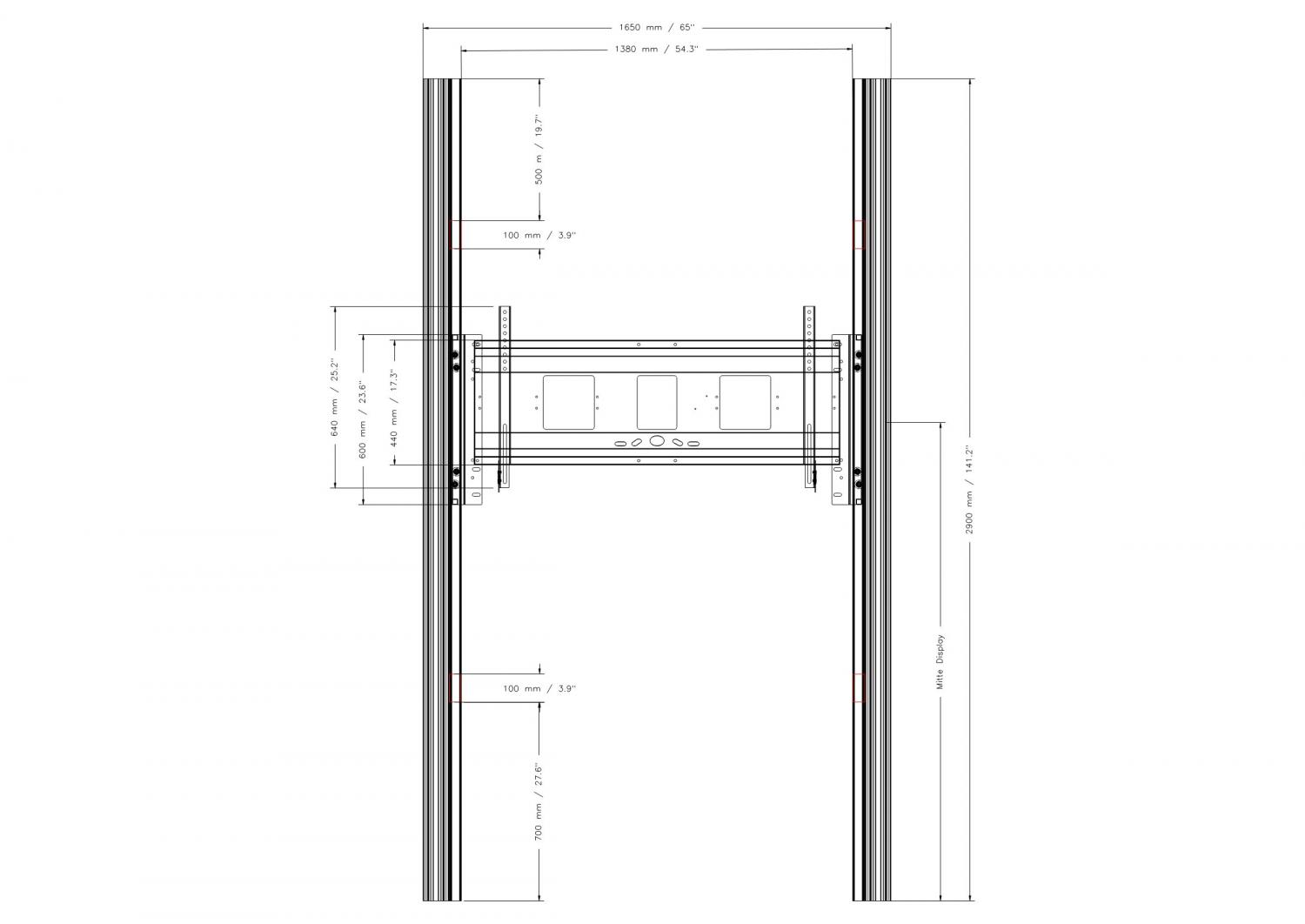

Width 1650 mm65"
Height 2900 mm114.2"
Depth 136 mm5.4"
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AF-PY-NGS
AFPYN12GU
AI-0019
GEWICHT-L
GEWICHT-R
PYTVF29
SLWBW..
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 PYFKL-IFPD-WThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 PYFKL-IFPD-WThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
